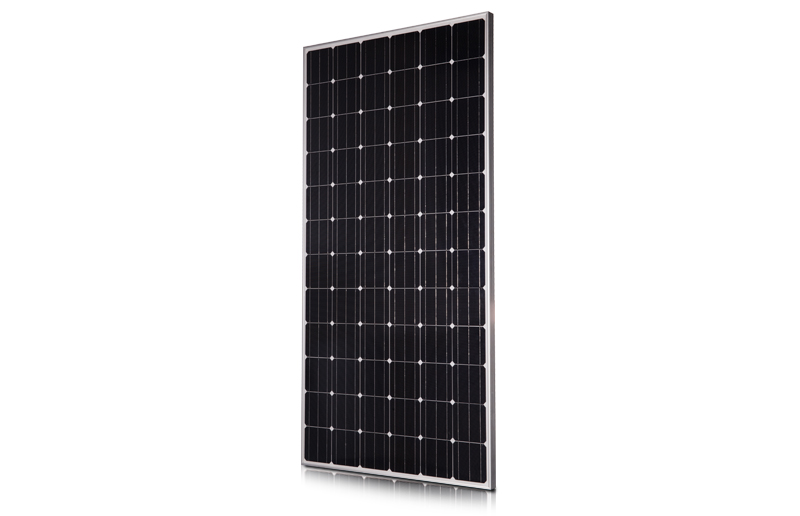

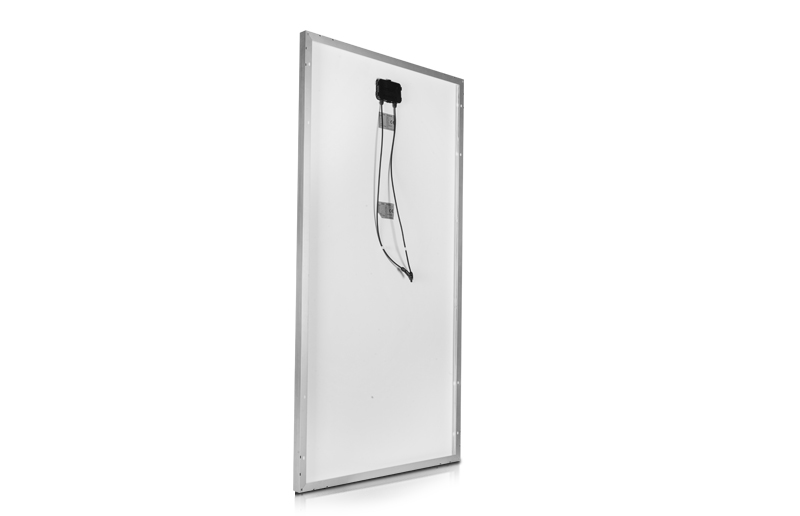

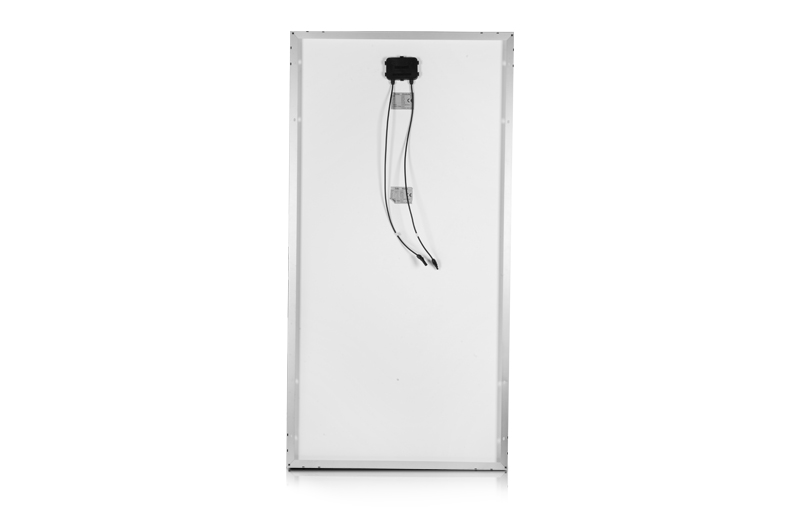

Mono Solar Panel
Technical Parameter of Mono Solar Panel
| Type Of Module | JCN-M300 | JCN-M310 | JCN-M320 | JCN-M325 | JCN-M330 | |||
| Maximum Power (W) | 300 | 310 | 320 | 325 | 330 | |||
| Tolerance (%) | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% | |||
| Open Circuit Voltage (V) | 43.92 | 43.92 | 43.92 | 43.92 | 43.92 | |||
| Maximum Power Voltage (V) | 35.14 | 35.14 | 35.14 | 35.14 | 35.14 | |||
| Maximum Power Current (A) | 8.54 | 8.82 | 9.11 | 9.25 | 9.39 | |||
| Short Circuit Current (A) | 10.2 | 10.6 | 10.9 | 11.1 | 11.3 | |||
| Module Efficiency (%) | 15.5 | 16 | 16.5 | 16.8 | 17.1 | |||
| Solar Cell Efficiency (%) | 18.4 | 19 | 19.6 | 20 | 20.2 | |||
| Series Fuse Rating (A) | 10 | 10 | 10 | 10 | 10 | |||

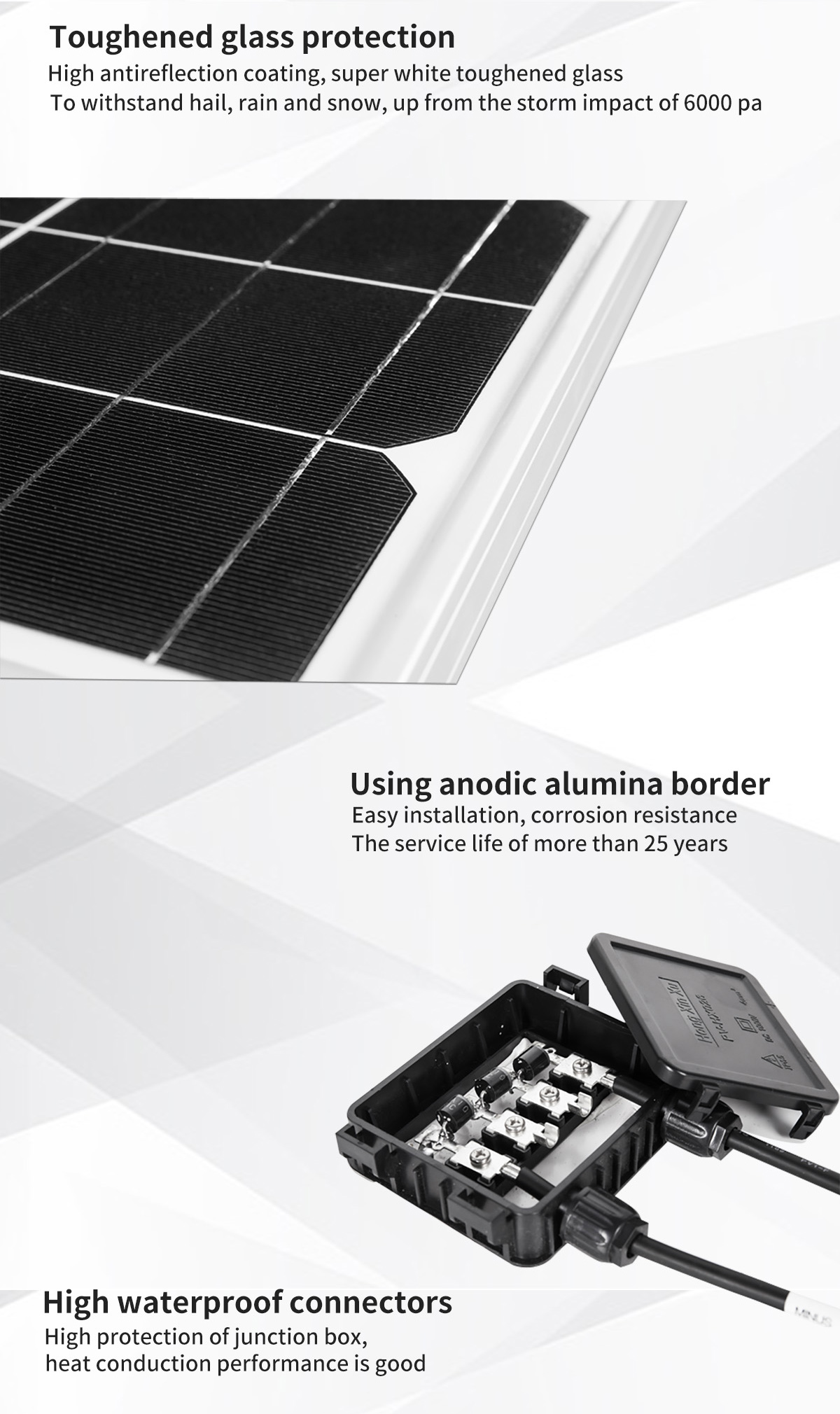

| Terminal Box | IP65 | IP65 | IP65 | IP65 | IP65 | |||
| Maximum system voltage (V) | DC1000 | DC1000 | DC1000 | DC1000 | DC1000 | |||
| Operating Temperature(℃) | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | |||
