18V 100W MONO ETFE foldable solar panel

1: 18V 100W MONO ETFE foldable solar panel(2 folds 50W*2PCS);

2: expand 550*1190*5MM:

3: Folding 550*595*30MM\junction box\with 1 MM2/1.5m cable+MC4;

4: with one 50CM cable with MC4 to DC5521 adapter cable;

5: QC3.0 fast charge function, USB 2A high current output, support PD protocol;

6: Inner box size: 565*615*70MM/1 piece, Gross weight: 4.56KG, Net weight: 4.3KG;

7: Outer box size: 580*635*375MM/5PCS, Net weight: 23KG, Gross weight: 24KG.

                 Data sheet for foldable solar charger

1: Production Introduction

100W solar charger is a solar energy product that directly converts light energy into electricity. In addition to charging the matched battery under sunlight, product can also directly charge various electronic devices, such as iPad, iPhone, laptop, etc. Product support dual port output independent USB-A and Type-C output at the same time, meanwhile each port support 18W output with fast charging protocol：

① Support BC1.2, Apple, Samsung protocol
② Support Qualcomm QC2.0 and QC3.0
③ Support HUAWEI Fast charging protocol (FCP)
④ Support Samsung Fast charging protocol (AFC)
⑤ Output over current, input over voltage, input under voltage, output short circuit protection
⑥ Over temperature protection
⑦ DP/DM over voltage protection
⑧ ESD 4KV, input DC voltage 40V

2: Product Instruction

First, open the solar charger and faces the direction of sunlight, then connect the charging equipment to the output port of the product through the charging cable.

3: Working Principle Of Solar Panel

The solar radiation energy is converted into electric energy through solar panels. It uses the photoelectric effect inside the solar panels. When the sunlight shines on a kind of semiconductor called "P-N junction" in the solar panels, the light with extremely short wavelength is easily absorbed by the semiconductor, and collides with the "valence electron" in the silicon atom to make the energy obtained by the "valence electron" become free electrons and escape from the lattice, thus generating electron flow.

Sunlight——Solar Panel——Controller——Device

4: Basic product performance test

① Test conditions and requirements of measuring instruments and equipment:

a. Test light intensity: 1000W/㎡ or analog light source 38,000 LUX

b. Unless otherwise specified, each test in this specification shall be conducted under the standard atmospheric conditions of the test:

c. Temperature: 25℃

d. Relative humidity: 10% ~ 90%

e. Atmospheric quality: AM1.5

f. The accuracy of the instrument for measuring voltage should not be lower than 0.5 level, and the internal resistance should not be less than 10kΩ/V.

g. The instrument precision for measuring current should not be lower than 0.5 level.

h. The accuracy of the instrument used for temperature measurement shall not be lower than ± 1℃

② Test Instruments: multimeter Fluke15B, electronic load, timer, DC power supply, Analog Light Source (halogen tungsten lamp), Oscilloscope.

Performance Schedule：

Note：

① Constant resistance mode test of using electronic load instrument when the product is loaded.

② When the input voltage is low when the solar light is insufficient, the Type-c port may have no fast charge, which is determined according to the lighting condition.

③ The output port of the product is equipped with intelligent identification IC and line loss voltage compensation to improve the compatibility of the product and the actual charging current.

④ Although the USB output port has a recognition IC, it cannot be guaranteed to be compatible with 100% of the devices on the market, mainly the mainstream intelligent devices on the market.

⑤ The combination of solar panels and light and the surface temperature of solar panels will affect the actual output power of solar products.

⑥ When the equipment is fully charged or due to insufficient light intensity, the output port may be continuously opened/closed, which belongs to the normal working range of the product.

⑦ The above test data of the fast charging output port is tested with the protocol trap tool.

5: Reliability and security performance

6: Structural Performance Metrics

① Materials and Surface treatment:

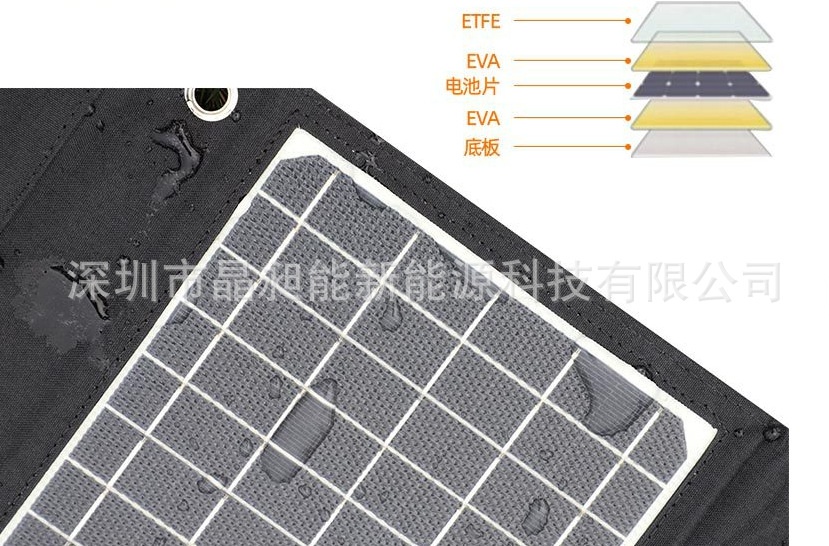

② Assembly process: PET/ETFE laminated + sewing

③ Appearance:

a. There shall be no damage, cracking, cloak, serious dislocation and other defects;

B. The color is correct, the surface treatment is good, and the upper and lower shells cannot have obvious color difference;

c. The position, content and color of pad printing must be correct.

④ Appearance structure diagram:

7: Accessories

According to customer’s needs.

8: Warranty period and product liability

The warranty is 12 months from the factory date. Shenzhen JCN New Energy Technology Co., Ltd. is not responsible for the accident caused by not operating according to the provisions of this specification. When there are some changes in this specification, the company will notify the buyer.

9: Revision of product specification

JCN will notify and obtain the consent of the customer when revising this product specification.

10: Solar panel notes

① Please do not squeeze the solar panels with force, otherwise it is easy to damage the solar panels.

② Please do not put the product into water or wet it.

③ Please make the solar panel and solar light form a vertical irradiation as far as possible appropriately, so as to improve the absorption of solar light by the solar panel.

④ Please keep the solar panel clean, otherwise it will easily affect the solar panel's absorption of sunlight.

⑤ Please ensure uniform illumination on each solar panel.

⑥ Please do not discard discarded solar panels at will.
