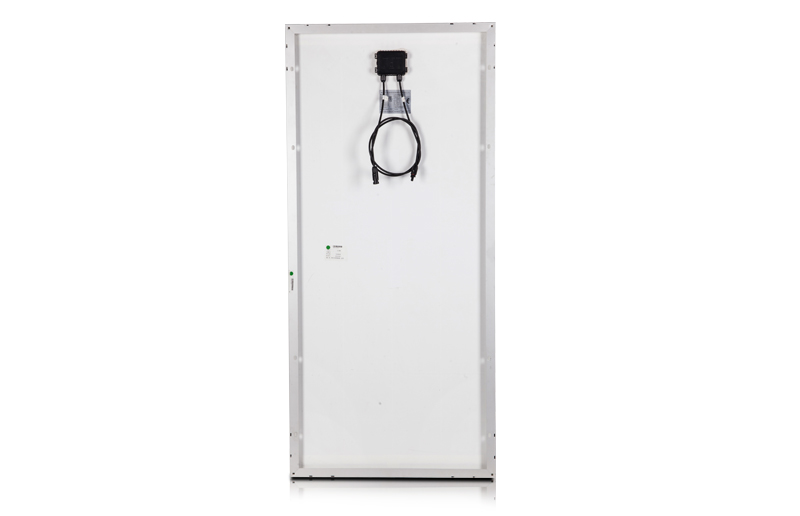

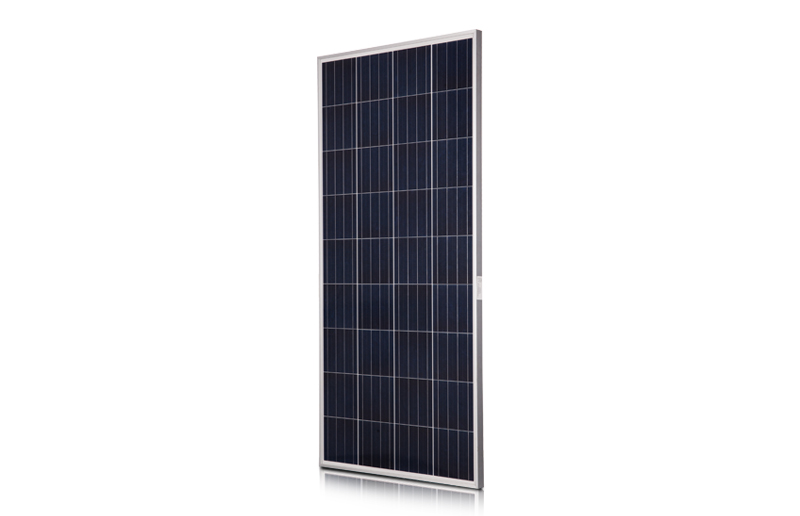

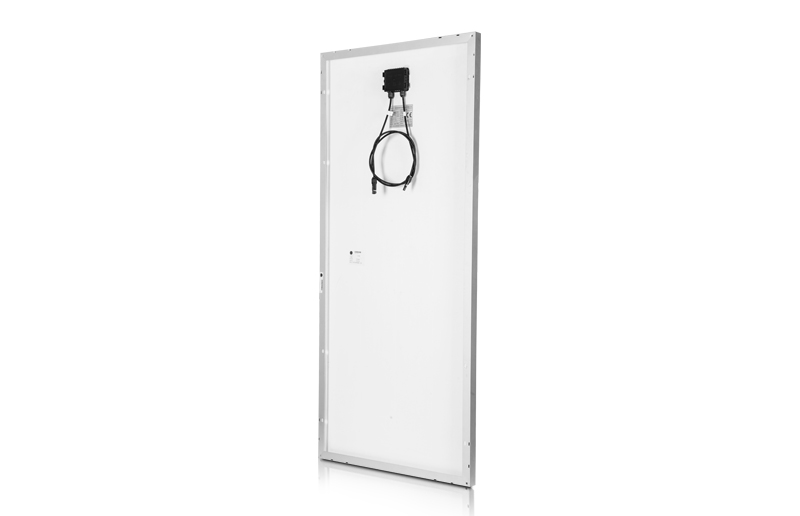

Poly Solar Panel
Technical Parameter of Poly Solar Panel
|
Type Of Module
|
JCN-P150 | JCN-P160 | JCN-P165 | |||||
| Maximum Power (W) | 150 | 160 | 165 | |||||
| Tolerance (%) | ± 3% | ± 3% | ± 3% | |||||
| Open Circuit Voltage (V) | 22.5 | 22.5 | 22.5 | |||||
| Maximum Power Voltage (V) | 17.96 | 17.96 | 17.96 | |||||
| Maximum Power Current (A) | 8.35 | 8.91 | 9.19 | |||||
| Short Circuit Current (A) | 9.2 | 9.8 | 10.1 | |||||
| Module Efficiency (%) | 15.1 | 16.1 | 16.6 | |||||
| Solar Cell Efficiency (%) | 17.4 | 18.6 | 19 | |||||
| Series Fuse Rating (A) | 10 | 10 | 10 | |||||

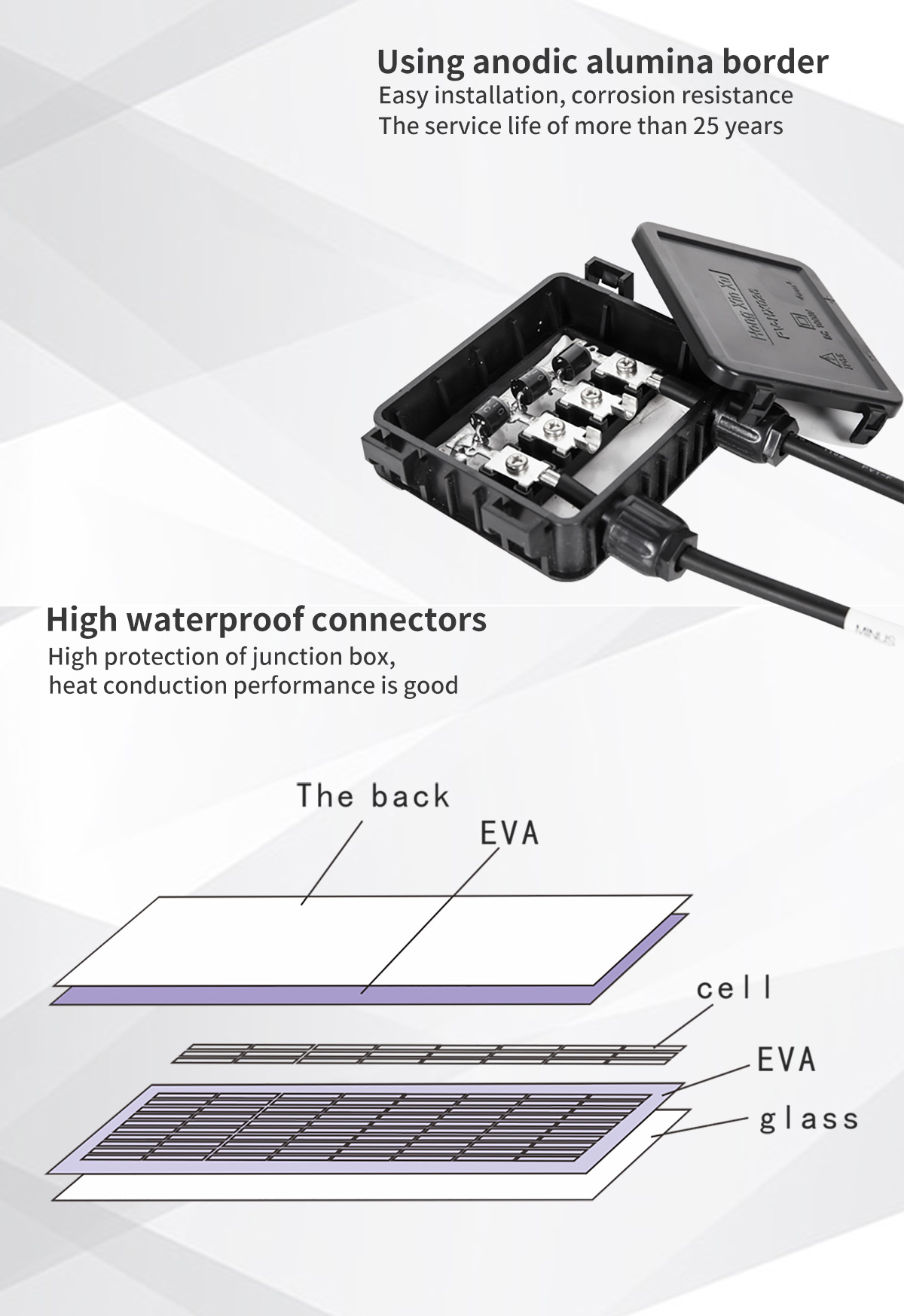

| Terminal Box | IP65 | IP65 | IP65 | |||||
| Maximum system voltage (V) | DC1000 | DC1000 | DC1000 | |||||
| Operating Temperature(℃) | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | |||||
