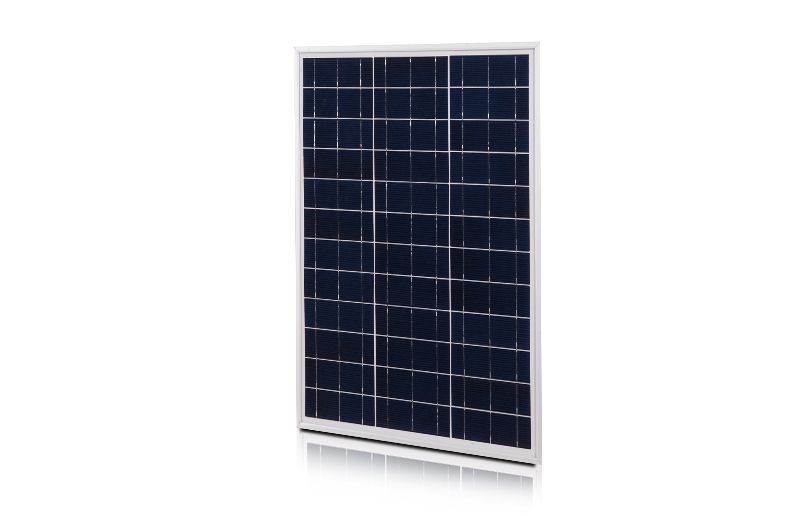

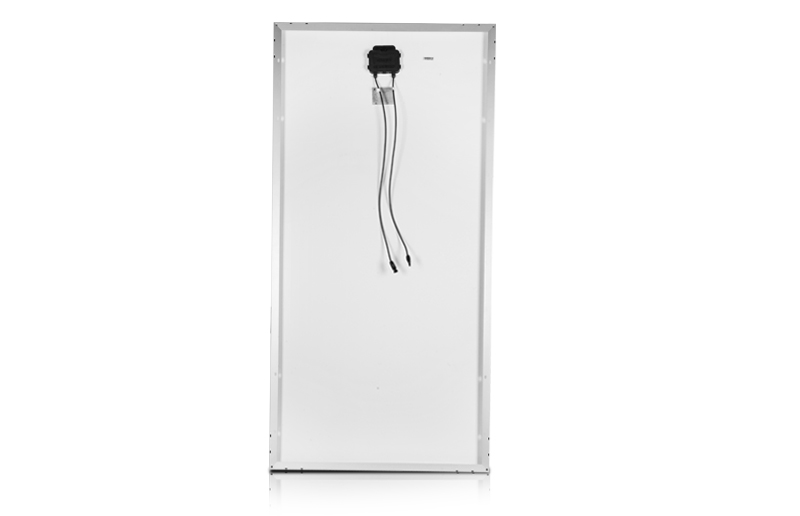

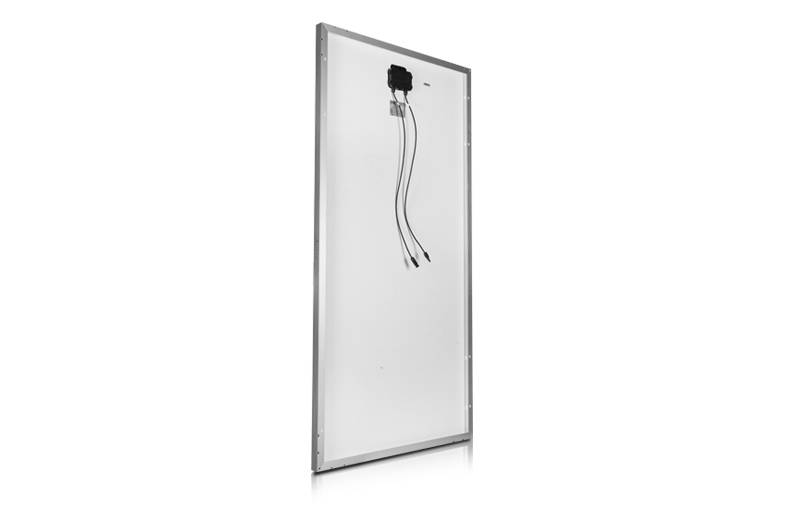

Poly Solar Panel
Technical Parameter of Poly Solar Panel
| Type Of Module | JCN-P290 | JCN-P300 | JCN-P305 | JCN-P310 | ||||
| Maximum Power (W)功率 | 290 | 300 | 305 | 310 | ||||
| Tolerance (%)正負公差 | ± 3% | ± 3% | ± 3% | ± 3% | ||||
| Open Circuit Voltage (V)開路電壓 | 43.92 | 43.92 | 43.92 | 43.92 | ||||
| Maximum Power Voltage (V)工作電壓 | 35.14 | 35.14 | 35.14 | 35.14 | ||||
| Maximum Power Current (A)工作電流 | 8.25 | 8.54 | 8.68 | 8.82 | ||||
| Short Circuit Current (A)短路電流 | 9.9 | 10.2 | 10.4 | 10.6 | ||||
| Module Efficiency (%)組件轉換率 | 15.2 | 15.7 | 16 | 16.2 | ||||
| Solar Cell Efficiency (%)電池片轉換率 | 16.6 | 17.1 | 17.4 | 17.7 | ||||
| Series Fuse Rating (A)保險絲等級 | 10 | 10 | 10 | 10 | ||||

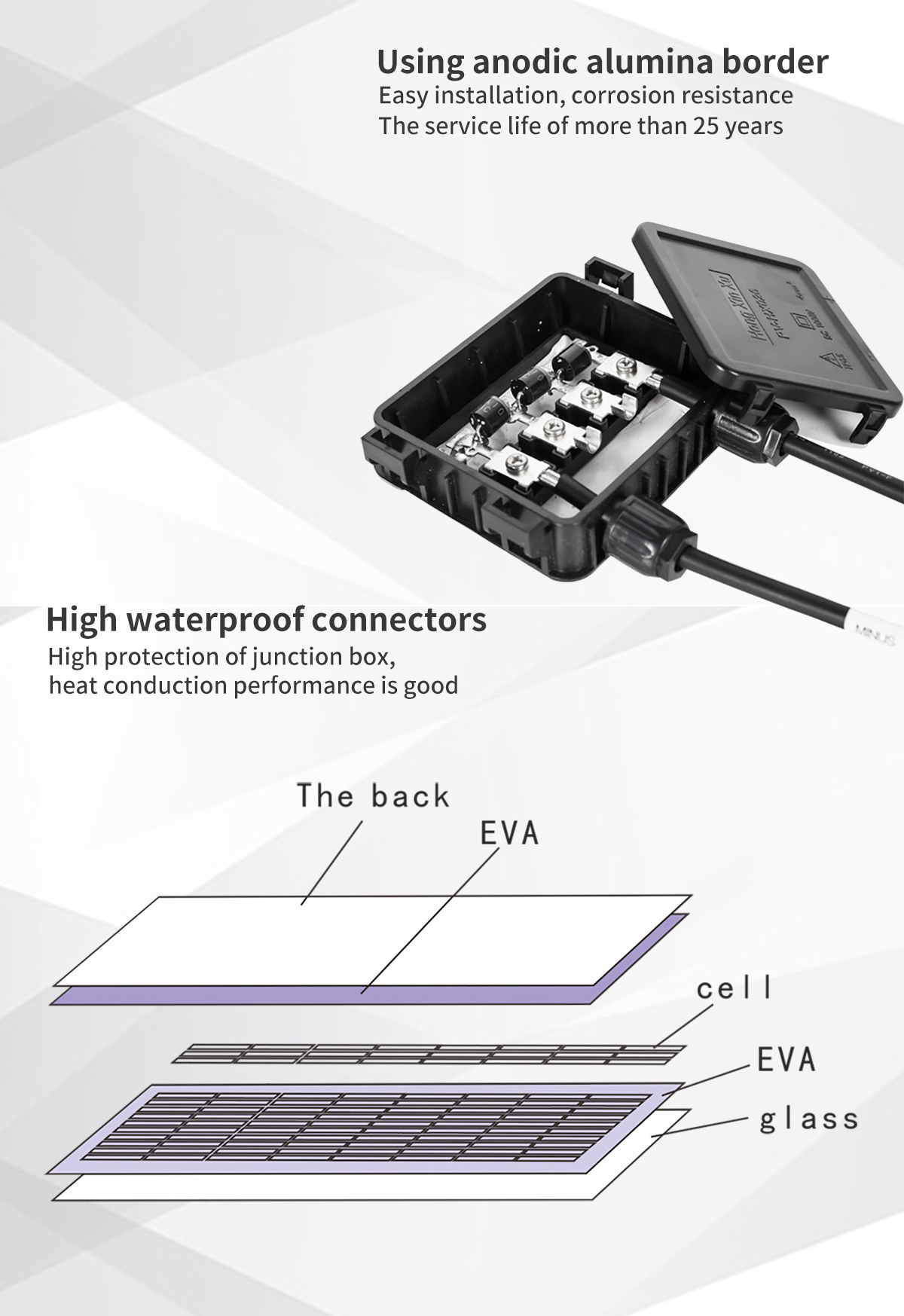

| Terminal Box 接線盒防水等級 | IP65 | IP65 | IP65 | IP65 | ||||
| Maximum system voltage (V) 系統耐壓 | DC1000 | DC1000 | DC1000 | DC1000 | ||||
| Operating Temperature(℃)工作溫度范圍 | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | ||||
