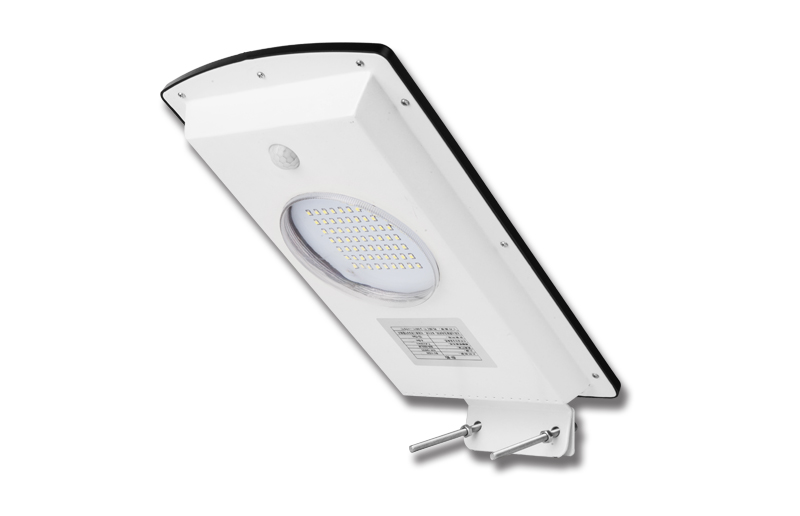

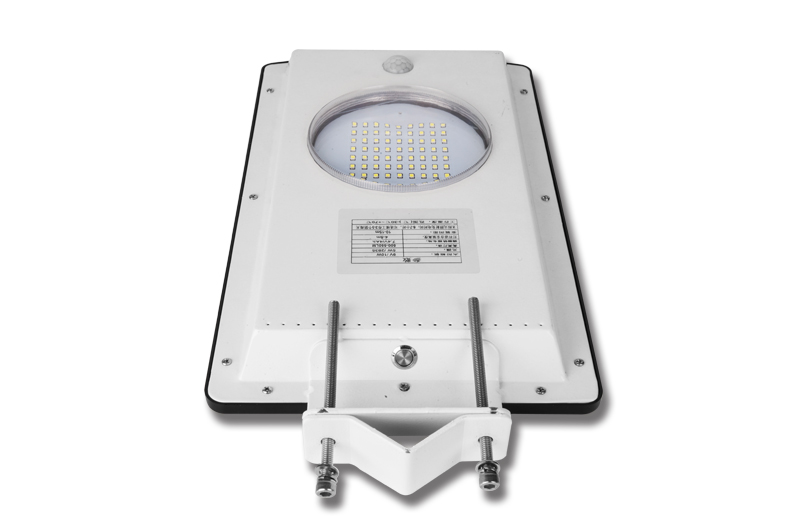

All In One Solar Street Light
| All in one solar street/garden light (5W) | ||||

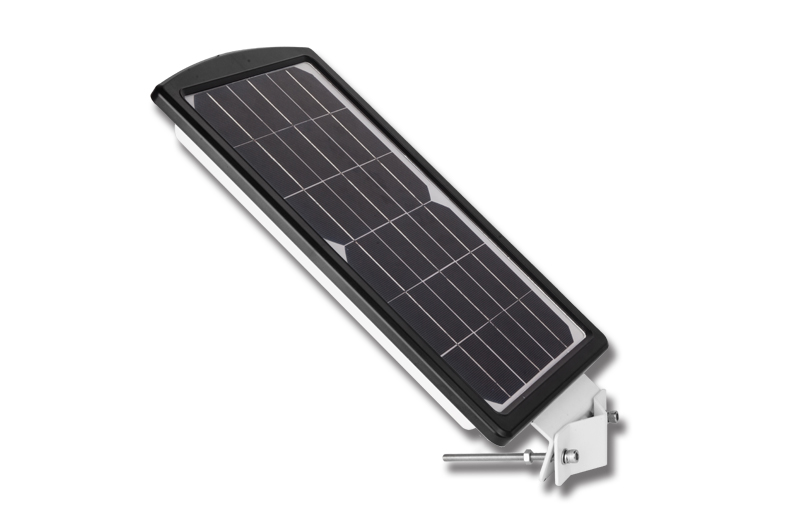

| Solar panel | Max power | 18V10W (high efficiency monocrystalline silicon) | ||
| Life time | 25 years | |||
| Battery | Type | 7.4V 4AH (Lithium iron phosphate Battery),brand:mottcell | ||
| Life time | 5 years | |||
|
LED Lamp (with sensor) |
Max power | 12V 5W | ||
| Led chip brand | Epistar with high brightness | |||
| Lumen (LM) | 625-650lm (125-130lm/w) | |||
| Life time | 50,000hours | |||
| Viewing Angle | 120° | |||
| Controller | specifications |
12V 5A MPPT intelligent controller,light and time control,auto ON/OFF Overload Protection;Over Charging Protection;Over Discharge protection Short circuit protection;Anti reverse polarity protection Cutting off by itself;Anti pouring charge;Anti thunder |
||
| Accessories | For installation | Installation bracket/Nuts/Bolts | ||
| Charge time | By sun | 6 hours | ||
| Discharge time | Full power | 12 hours | ||
| Half power | 24 hours | |||
| Working Temperature | Range( ℃ ) | -30℃~+70℃ | ||
| Colour temperature | Range(k) | 6000-7500k (can customized) | ||
| Mounting height | Range (m) | 2.5-3m | ||
| Space between light | Range (m) | 7-9m | ||
| Lamps material of main | Aluminium alloy | |||
| Certificate | CE / ROHS / IP65 | |||
| Warranty period | 2 years | |||
| Packing & Weight | Product size | 480*280*55mm | Corton size | 500*570*370mm |
| Product weight | 4.5kg | GW.for corton | 22kg | |
| Packing box | neutral | Q'ty/ctn | 4sets/ctn | |
| Packs Containers | 20GP | 1080pcs | 40GP | 2250pcs |
