All In One Solar Street Light
| All in one solar street/garden light (50W) | ||||

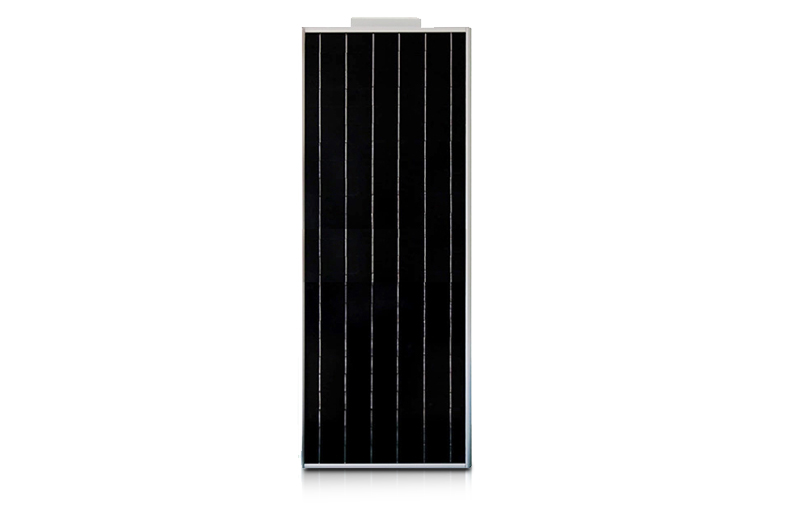

| Solar panel | Max power | 18V 70W (Sunpower monocrystalline silicon from USA) | ||
| Life time | 25 years | |||
| Battery | Type | 12.8V 36AH(Lithium iron phosphate Battery); brand:mottcell | ||
| Life time | 5 years | |||

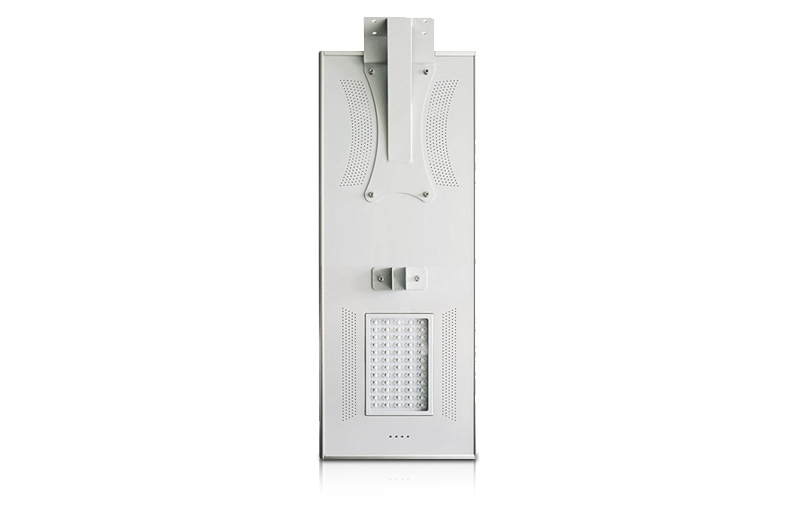

| LED Lamp (with motion sensor) | Max power | 12V 50W | ||
| Led chip brand | Bridgelux from USA with high brightness | |||
| Lumen (LM) | 6250-6500lm (125-130lm/w) | |||
| Life time | 50,000hours | |||
| Viewing Angle | 120° | |||
| Controller | Specifications |
12V 10A MPPT intelligent controller,light and time control,auto ON/OFF Overload Protection;Over Charging Protection;Over Discharge protection Short circuit protection;Anti reverse polarity protection Cutting off by itself;Anti pouring charge;Anti thunder |
||
| Accessories | For installation | Installation bracket/Nuts/Bolts | ||
| Charge time | By sun | 6 hours | ||
| Discharge time | Full power | more 15 hours | ||
| Saving mode | more 30 hours | |||
| Working Temperature | Range( ℃ ) | -30℃~+70℃ | ||
| Colour temperature | Range(k) | 6000-7500k (can customized) | ||
| Mounting height | Range (m) | 7-9m | ||
| Space between light | Range (m) | 25-30m | ||
| Lamps material of main | Aluminium alloy | |||
| Certificate | CE / ROHS / IP65 | |||
| Warranty period | 2 years | |||
| Packing & Weight | Product size | 1200*380*160mm | Corton size | 1230*460*230 mm |
| Product weight | 21kg | GW.for corton | 24.5kg | |
| Packing box | neutral | Q'ty/ctn | 1sets/ctn | |
| Packs Containers | 20' GP | 280 sets | 40' GP | 620sets |
