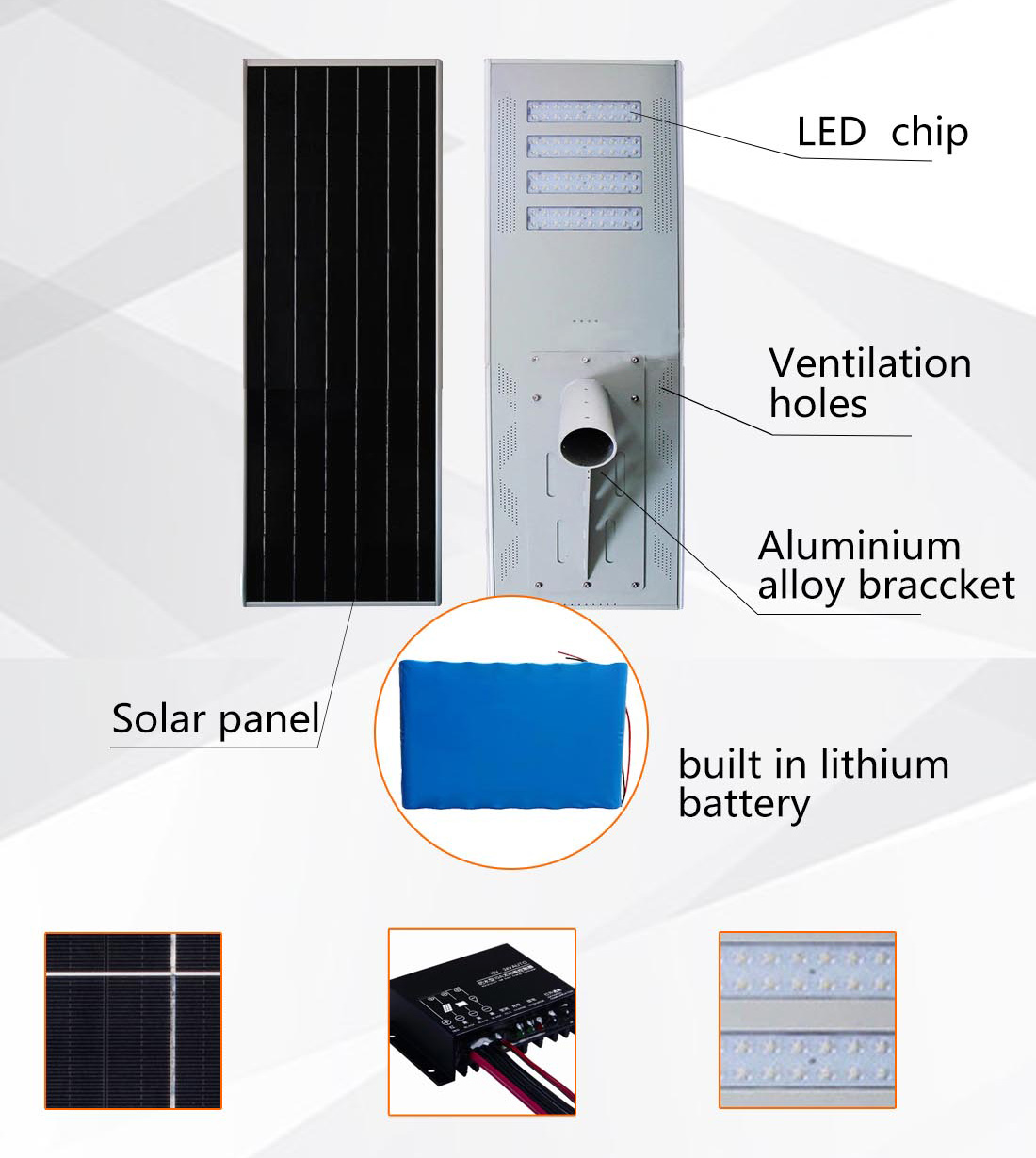

All In One Solar Street Light
| Integrated Solar Street/Garden Light (80W) | ||||

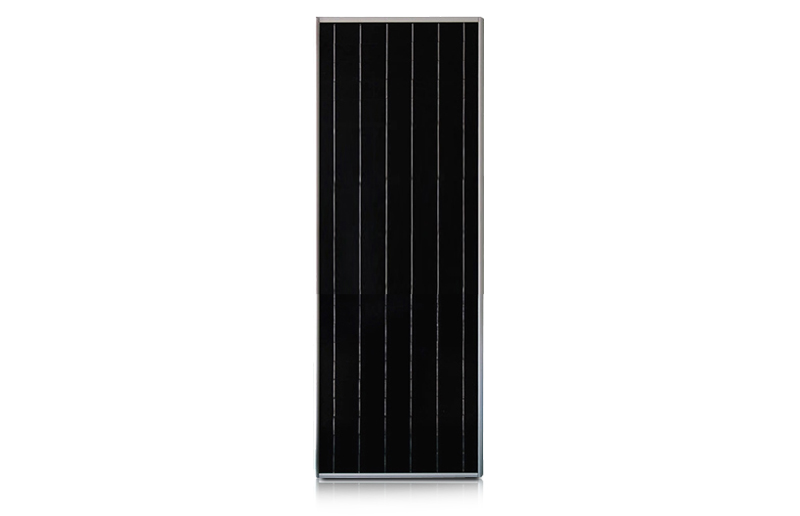

| Solar panel | Max power | 18V100W (Sunpower monocrystalline silicon from USA) | ||
| Life time | 25 years | |||
| Battery | Type | 12.8V 63AH (Lithium iron phosphate Battery); brand:mottcell | ||
| Life time | 5 years | |||
|

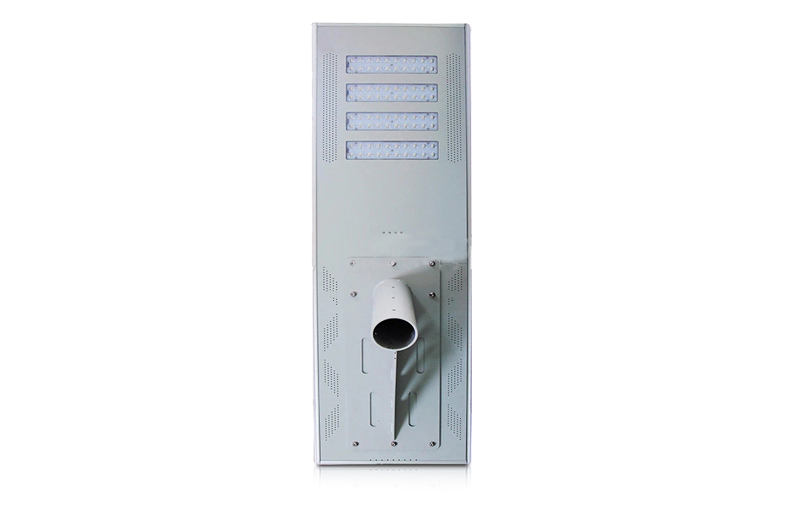

LED Lamp (with motion sensor) |
Max power | 12V 80W | ||
| led chip brand | Bridgelux from USA with high brightness | |||
| lumen (LM) | 10400-12000lm(125-130lm/w) | |||
| Life time | 50,000hours | |||
| Viewing Angle | 120° | |||
| Controller | Specifications |
12V 10A MPPT intelligent controller,light and time control,auto ON/OFF Overload Protection;Over Charging Protection;Over Discharge protection Short circuit protection;Anti reverse polarity protection Cutting off by itself;Anti pouring charge;Anti thunder |
||
| Accessories | For installation | Installation bracket/Nuts/Bolts | ||
| Charge time | by sun | 7 hours | ||
| Discharge time | full power | more 15 hours | ||
| saving mode | more 30 hours | |||
| working Temperature | range( ℃ ) | -30℃~+70℃ | ||
| colour temperature | range(k) | 6000-7500k (can customized) | ||
| mounting height | range (m) | 7-10m | ||
| space between light | range (m) | 25-40m | ||
| Lamps material of main | aluminium alloy | |||
| Certificate | CE / ROHS / IP65 | |||
| warranty period | 2 years | |||
| Packing & Weight | product size | 1200*450*160mm | Carton size | 1230*520*230 mm |
| product weight | 28kg | GW.for corton | 30kg | |
| Packing box | neutral | Q'ty/ctn | 1sets/ctn | |
| Packs Containers | 20' GP | 240 sets | 40' GP | 580sets |
